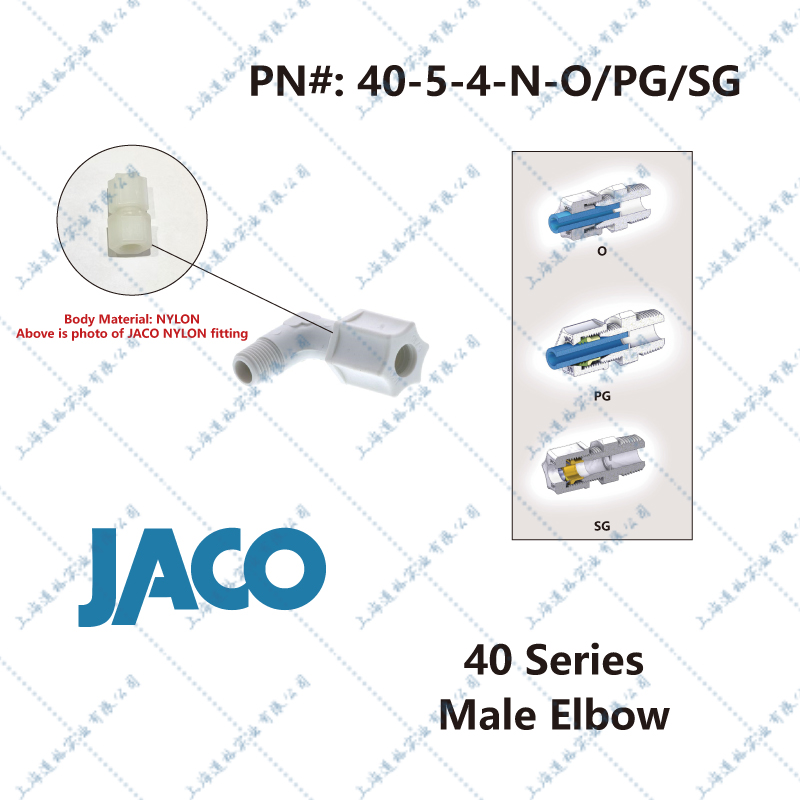

JACO Compression Fitting 40 Series Male Elbow 40-5-4-N-O/40-5-4-N-PG/40-5-4-N-SG

1 Design Considerations

· Nut Style: O, ferrule nut with integral sleeve；

PG, nut with plastic gripper

SG, nut with stainless steel gripper

· PG style includes NYLON nut, ACETAL gripper & NYLON sleeve;

SG style includes NYLON nut, stainless steel gripper & NYLON sleeve

· Body Material: Natural Nylon

2 Description

Part Number	Description	Body Material	Nut Style	Pressure Rating
40-5-4-N-O	5/16"OD ×1/4"MNPT	Natural Nylon	O, ferrule nut with integral sleeve	50 PSI （3.45Bar）
40-5-4-N-PG	5/16"OD ×1/4"MNPT	Natural Nylon	PG, nut with plastic gripper	220 PSI （15.17Bar）
40-5-4-N-SG	5/16"OD ×1/4"MNPT	Natural Nylon	SG, nut with stainless steel gripper	220 PSI （15.17Bar）
